An existing fire door can sometimes be upgraded to FD30S. However, only where its construction, condition, frame, components and available evidence support the required fire and smoke performance.
An existing door can sometimes be upgraded to FD30S rather than replaced completely. That decision depends on the condition of the door, how it was constructed and whether its fire performance can be supported with suitable evidence. Adding seals or changing hardware alone does not automatically create an FD30S door. A competent assessment should establish whether upgrading is appropriate.
Key Takeaways
- A sound existing fire door may be suitable for an FD30S upgrade.
- The door leaf, frame, seals, hinges, closer, glazing and hardware must be considered together.
- Damage, unsuitable construction or insufficient evidence can make replacement the better option.
- An existing door does not automatically need to meet the same standards as a newly installed fire door.
What Is an FD30S Fire Door?
An FD30S fire door is a complete fire door assembly designed to provide 30 minutes of fire resistance while also limiting the spread of smoke. FD30 refers to the 30 minute fire resistance period, while S refers to smoke control.
The important bit is that the rating applies to the whole doorset, not just the door leaf. The frame, hinges, closer, intumescent seals, glazing, locks and other components all need to be suitable for the required performance.
According to FireSafe’s guidance on upgrading doors to fire doors, these components need to be considered together when assessing the fire performance of an existing door.
So, adding a new seal or closer alone does not automatically make an existing door FD30S. The complete assembly needs suitable supporting evidence, such as testing, assessment or certification.
Can an Existing Door Be Upgraded to FD30S?
Yes, some existing doors can be upgraded to FD30S. The underlying door needs to be suitable, structurally sound and capable of accepting compatible components without compromising the assembly.
The door and frame also need to work together. This includes:
- The gaps
- Seals
- Hinges
- Closer
- Glazing
- Locking hardware.
For existing flat entrance doors, government guidance is particularly important. It states that the Fire Safety (England) Regulations 2022 were not introduced to make older flat entrance doors meet the standards that apply to new fire doors. A door that met the required standard when it was manufactured or installed can remain adequate where it is undamaged and properly maintained.
That means age alone does not decide whether a door should be replaced. The condition, construction, location and available evidence all matter.

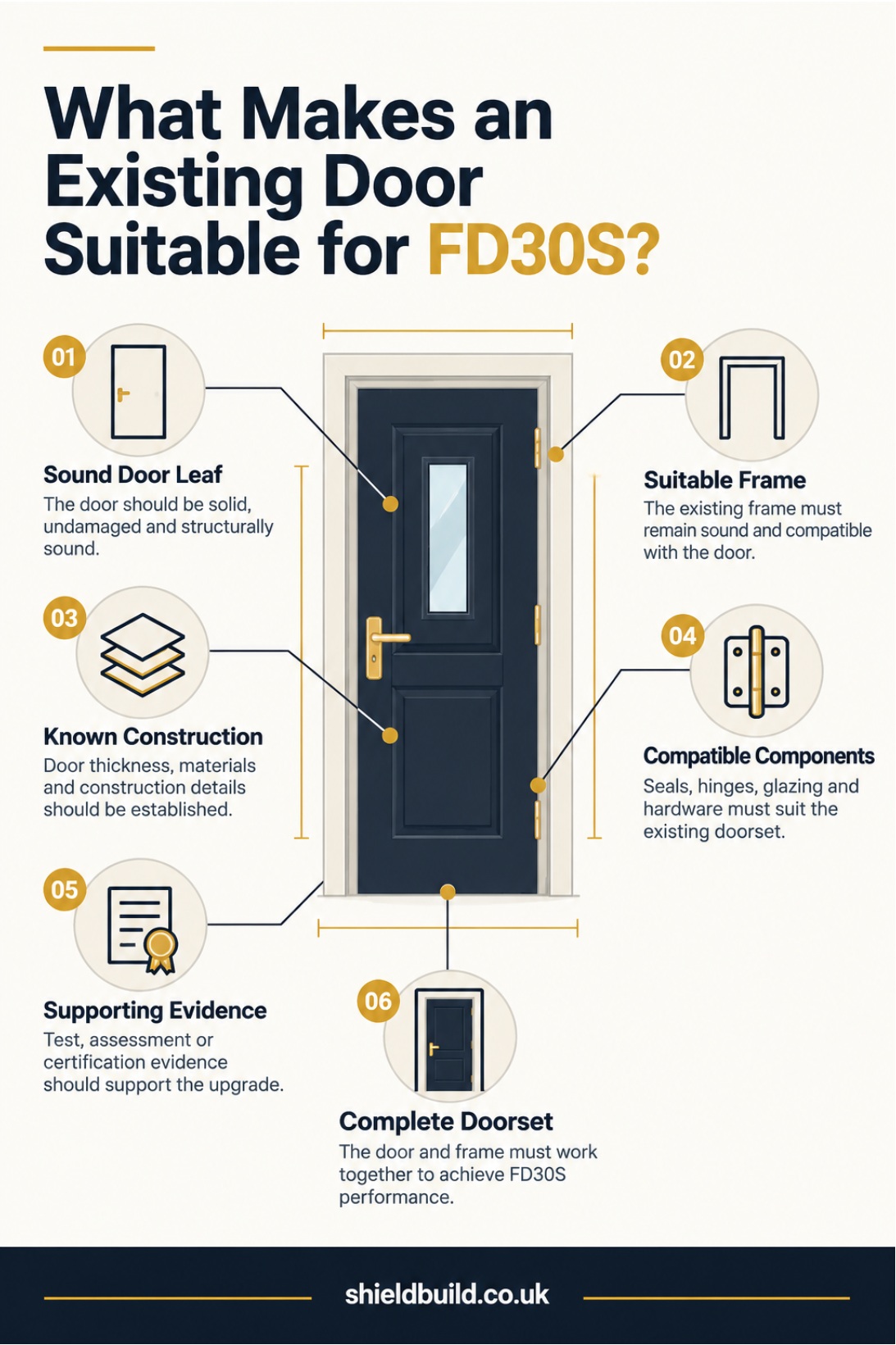

When Can an Existing Door Be Upgraded to FD30S?
An upgrade is more realistic when the original door already has meaningful fire resisting characteristics and can accept suitable components.
The key checks include:
Door Condition
The door leaf should be solid, structurally sound and able to close properly within the frame. Significant cracking, warping, delamination or water damage can affect the integrity of the leaf.
Minor wear is not the same as structural damage. A competent inspection should establish whether defects can be repaired or whether they compromise the door itself.
Existing Certification and Evidence
Evidence can come from manufacturer information, historic test data, construction details, door thickness, age and records of previous work.
A missing certificate does not automatically prove that an existing door is unsafe. It can, however, make it harder to justify a specific FD30S upgrade where the original construction and performance cannot be established.
Compatible Components
Intumescent seals, smoke seals, hinges, latches, closers, glazing and other hardware may be suitable for an upgrade where they are compatible with the existing assembly.
The important point is compatibility. Replacing every component with newer marked products does not automatically make the complete doorset FD30S.
Door and Frame Suitability
The door leaf cannot be assessed on its own. The frame, gaps, hinges, seals, closer and other components affect how the complete assembly performs.
A sound door can still present a problem when fitted into a badly damaged or unsuitable frame. RICS guidance also stresses that existing ironmongery should be assessed for its actual suitability. It should not be rejected simply because it lacks markings that may not have been required when the door was manufactured.

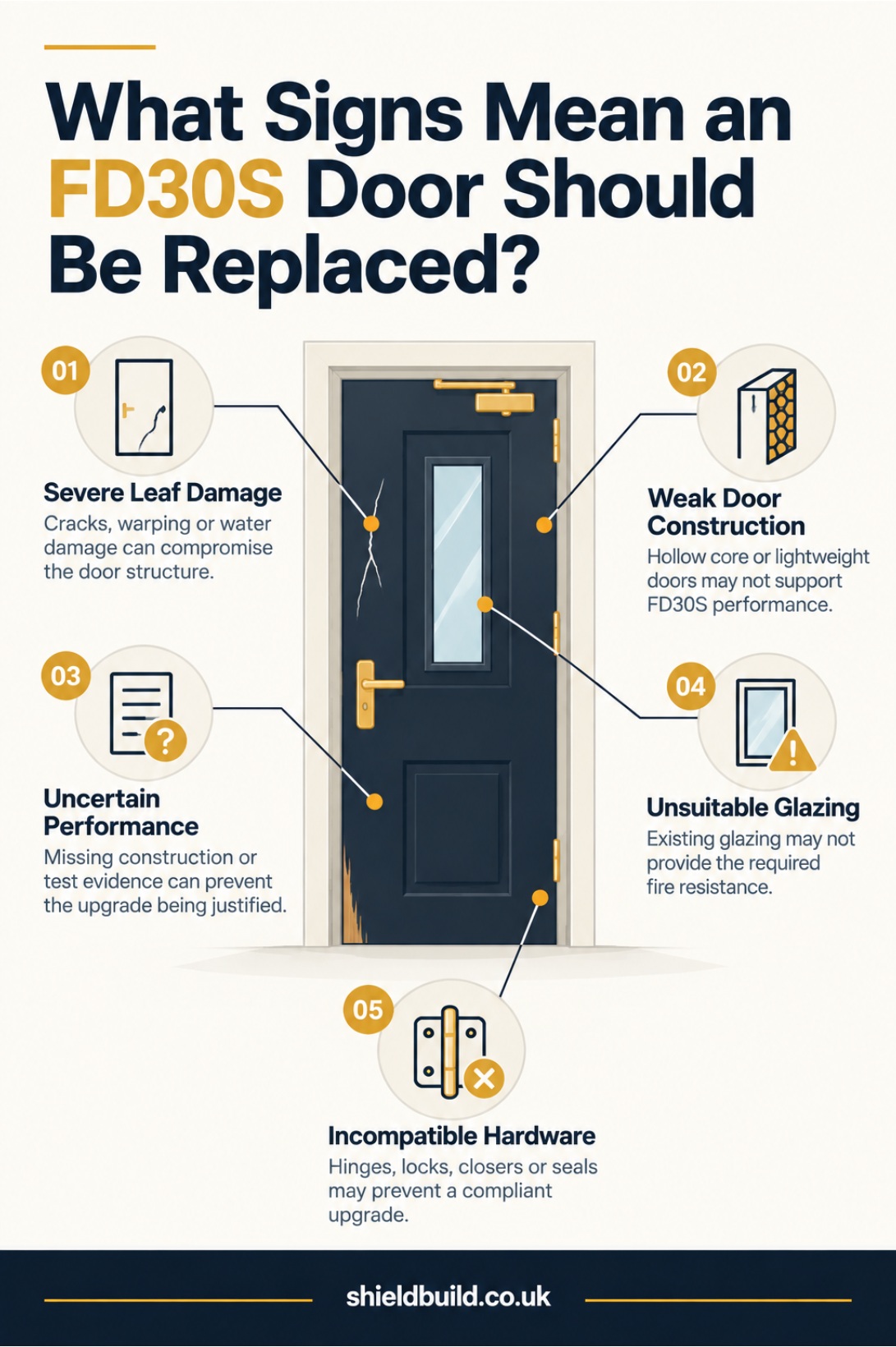

When Does an FD30S Door Need Replacing?
Replacement becomes more appropriate when the existing door cannot reasonably demonstrate the required performance or its construction and condition make an upgrade impractical. This is different from saying every old or uncertified door must be replaced.
